CHAPTER XXVIII


THE CLOCK-STARS IN EGYPT AND BRITAIN.


I HAVE now finished my astronomical reconnaissance of the British monuments. I trust I have shown how important it is that my holiday task should be followed by a serious inquiry by other workers so that the approximate values with which I have had to content myself for want of time may be replaced by others to which the highest weight can be attached. This means at each circle reversed observations with a six-inch theodolite and determination of azimuths by means of observations of the sun if necessary.

I propose in the present chapter to bring together the general results already obtained in cases where the inquiry has been complete enough to warrant definite conclusions to be drawn.

The first result to be gathered from the observations, and one to which I attach the highest importance, is that the practice, so long employed in Egypt, of determining time at night by the revolution of a star round the pole, was almost universally followed in the British circles. This practice was to watch a first-magnitude star, which I named a "clock-star," ( footnote 295:1 ) of such a declination that it just dipped below the northern horizon so that it was visible for almost the whole of its path. Doubtless this same method of determining the flow of time during the night watches was also employed in Babylonia, ( footnote 295:2 ) but there, alas! the temples, or, in other words, the astronomical observatories, have disappeared, so that only the Egyptian practice remains for us to study.

Egypt.

Let us, before we proceed, consider some results which have been gathered from the study of the Egyptian observations.

One of the earliest temples in Egypt concerning which we have historical references to check the orientation results was built to carry on these night observations at Denderah, lat. N. 26° 10´. The star observed was a Ursae Majoris, decl. N. 58° 52´, passing 5° below the northern horizon; date (assuming horizon 1° high) about 4950 B.C., i.e., in the times of the Shemsu Heru, before Mena, as is distinctly stated in the inscriptions.

After a Ursae Majoris had become circumpolar in the latitude of Denderah, ? Draconis, which had ceased to be circumpolar, and so fulfilled the conditions to which I have referred, replaced it. Its declination was 58° 52´ N. about 3100 B.C., and it, therefore, could have been watched rising in the axis. prolonged of the old temple in the time of Pepi, who restored it then, no doubt on account of the advent of the new star; and is stated to have deposited a copy of the old plan in a cavity in the new walls.

Here, then, we have two dates, given by orientation of a clock-star temple entirely agreeing with the most recent views of Egyptian chronology.

In Dr. Budge's History of Egypt (iii. 14) the story of the rebuilding of the temple at Annu by Usertsen (2433 B.C., Brugsch) is given from an ancient roll. Supposing this temple built parallel with the faces of the remaining obelisk, ? Draconis would rise in its axis prolonged 2500 B.C., proving that Usertsen did at Annu what Pepi previously did at Denderah, and that the same reason for restoration and even the same star were in question. ( footnote 296:1 )

When the clock-star ceased to be visible in the chief temple other subsidiary temples were subsequently built to watch it. Thus ? Draconis was watched at Thebes from 3500 B.C. to the times of the Ptolemys by temples oriented successively from that of Mut Az. N. 72° 30´ E. to 68° 30´, 63° 30´, and 62°. ( footnote 296:2 )

It is worth while to show that what we know now of the Egyptian methods of observation enables us to carry the matter further, while we gather at the same time that in consequence of the difference of latitude the method employed in Egypt could not be followed in Britain.

I showed in the Dawn of Astronomy that several ancient shrines consisted of two temples at right angles to each other (see Fig. 13), one axis pointing high N.E. to observe the clock-star--the worship of Set—the other low N.W. to observe either the sun by itself, or in association with some important star of the same declination as the sun.

The temples of Mut and Menu (or Min), and of Amen, with the associated temple M. of Lepsius, at Karnak, are the best extant examples of this principle of temple building.

There is evidence that both at Annu and Memphis the same principle was followed, but at Annu one obelisk alone remains, and at Memphis one temple; from these, however, Captain Lyons and myself have obtained sufficient data to enable the original directions of the temple-systems to be gathered.

At Denderah, if such a N.W. temple ever existed it has disappeared, but as the monument stands there are still two temples at right angles to each other, but the second one faces S.E. instead of N.W.

This premised, I will now give, in anticipation of another one dealing with the British monuments, a list of the most ancient star temples in Egypt, with their azimuths and the first-magnitude clock-stars which could have been observed in them at different dates. These dates have been approximately determined by the use of a precessional globe, an horizon of 1° elevation being assumed. As I have shown, the present views of Egyptian chronology and the inscriptions carry us back to a Ursae Majoris, at Denderah. But there is a suggestion at Luxor, and perhaps also at Abydos, that Vega was used before that star, though there are, so far as I know, no temple traces of Arcturus.


Temple. N. Lat. Az. N.E. N. Decl. Vega. Arcturus. Ursae Majoris. Draconis.
Annu 30° 10´ 14° 0´ 57° 25´ 6250 5550 5200 2500
Memphis 29 50 12 45 58 20 6450 6000 5000 2850
Denderah 26 10 18 30 58 52 6550 6200 4950 3100
Thebes (Mut) 25 40 17 30 59 46 6700 6700 4800 3500
Tell-el-Amarna 27 40 13 0 60 12 6800 6800 4750 3700
Nagada 26 10 12 0 61 16 7000 4600 4000 7400


There is a very great difference between determining the date of a temple erected to the rising or setting of a particular star, and of one erected to the rising or setting of the sun on a particular day of the year. In the latter case no date. can be given unless we have reason to believe that both the sun and a star rose or set at the same point of the horizon at the same date; in other words, the sun and star had the same declination, and the rising or setting of both could be seen in the same temple.

I assumed, without historical data, that this view was acted on in Egypt, at the temple of Menu; Mr. Penrose found, with historical data, that it was actually acted on in Greece at the Parthenon. To show that we are at all justified in this view we must study the association of gods with temple worship, and look for temples in different azimuths erected at different times if the god is a star; and we can run the star home if the dates fall in with the star's precessional change. Thus there is reason for supposing that the god Ptah and the star Capella were associated. There is a temple of Ptah at Memphis, Az. N. 77° 15´ W., hills 50´, decl. N. 11°, star Capella, date 5200. In the rectangular system at Memphis, then, a Ursae Majoris was watched in one temple and Capella in the other at that date. There is also evidence that the god Menu was associated with the star Spica. In the temple system of Mut at Thebes, in 3200 B.C., ? Draconis was used as a clock-star in one temple, while the setting of Spica was watched in the other.

If a temple is erected to. the sun with no specially named cult, it may be a sun-temple pure and simple, not connected with star worship because there was no star with the, proper declination at the time.

In Greece temple-building was carried on at a much later time, so late that perhaps water clocks were available, so that we should not expect to find many clock-star temples in that country. As a. matter of fact there is only one, of which the data, according to Mr. Penrose, are as follows:—



  N. Decl. Star. Date.
Thebes, The City of the Dragon +54° 28' Draconis 1160


It will be seen that the star used in Greece was the last clock-star traced in the Egyptian temples.

Britain.

I now come to Britain. So far as my inquiries have gone, these clock-star observations were introduced into these islands about 2300 B.C.

In my statement concerning them I will deal with the astronomical conditions for lat. 50° N., as it is in Cornwall that the evidence is most plentiful and conclusive.

In that latitude and at that time Arcturus, decl. N. 41°, was just circumpolar with a sea horizon, and therefore neither rose nor set. Capella, decl. N. 31°, when northing was 9° below the horizon, so that it rose and set in azimuths N. 37°. E. and N. 37° W. respectively; it was therefore invisible for a long time and was an awkward clock-star in consequence.



FIG. 61.—Arcturus and Capella as clock-stars in Britain.
AB= sea horizon. A´B´ =horizon 3° high.




Fig. 61 represents diagrammatically the conditions named, the circumpolar paths of Arcturus and Capella being shown by the smaller and larger circle respectively. A B represents the actual sea horizon and A´ B´ a locally raised horizon 3° high, whilst the dotted portion of the larger circle represents the non--visible part of Capella's apparent path.

What the British astronomer-priests did, therefore, in the majority of cases was to set up their temples in a locality where the N.E. horizon was high, so that Arcturus rose and set over it and was invisible for only a short time, as shown in the diagram by the raised horizon A' B'.

The two lists following contain the names of the monuments where I suggest Arcturus was used as a clock-star. In the first, the angular elevation of the sky-line as seen from the circle in each case has been actually measured, and the date of the alignment is, therefore, fairly trustworthy; but in the second list the elevations have been estimated from the differences of contour shown on the one-inch Ordnance map, and the dates must be accepted as open to future revision.

ARCTURUS AS A CLOCK-STAR.

I.



II.



In some cases, for one reason or another, this arrangement was not carried out, and Capella, in spite of the objection I have stated, was used in the following circles

CAPELLA AS A CLOCK-STAR.



At the Merry Maidens, however, with nearly a sea horizon, when Arcturus ceased to be circumpolar and rose in Azimuth N. 11° 45´ E., it replaced Capella, and was used as a clock-star after 1600 B.C.

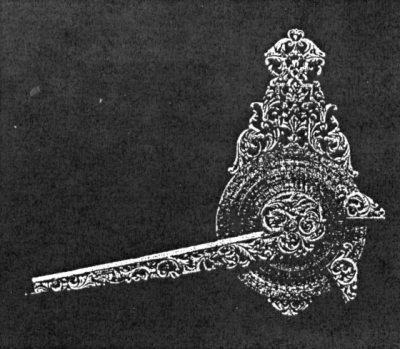

In this system of night observation we have the germ of the use in later times of an instrument called the "night-dial," specimens of which, dating from the fourteenth century, can be seen in our museums. The introduction.of graduated circles permitted the employment of circumpolar stars, and the "guards" of the Little Bear or the "pointers" of the Great Bear, were thus used.
There was a disc with a central aperture through which the pole star could be observed; the disc could be adjusted for every night in the year; an arm was then moved round so that the direction of the pointers (or the guards) with regard to the vertical could be measured; on a second concentric circle the time of night could be read off.



FIG. 62.—A “night-dial.”


--------------------------------------------------------------------------------

Footnotes
295:1 Dawn of Astronomy, 1894, p. 343.

295:2 Jensen, Kosmologie der Babylonier, p. 147.

296:1 Dawn of Astronomy, p. 215.

296:2 Ibid., p. 214.
